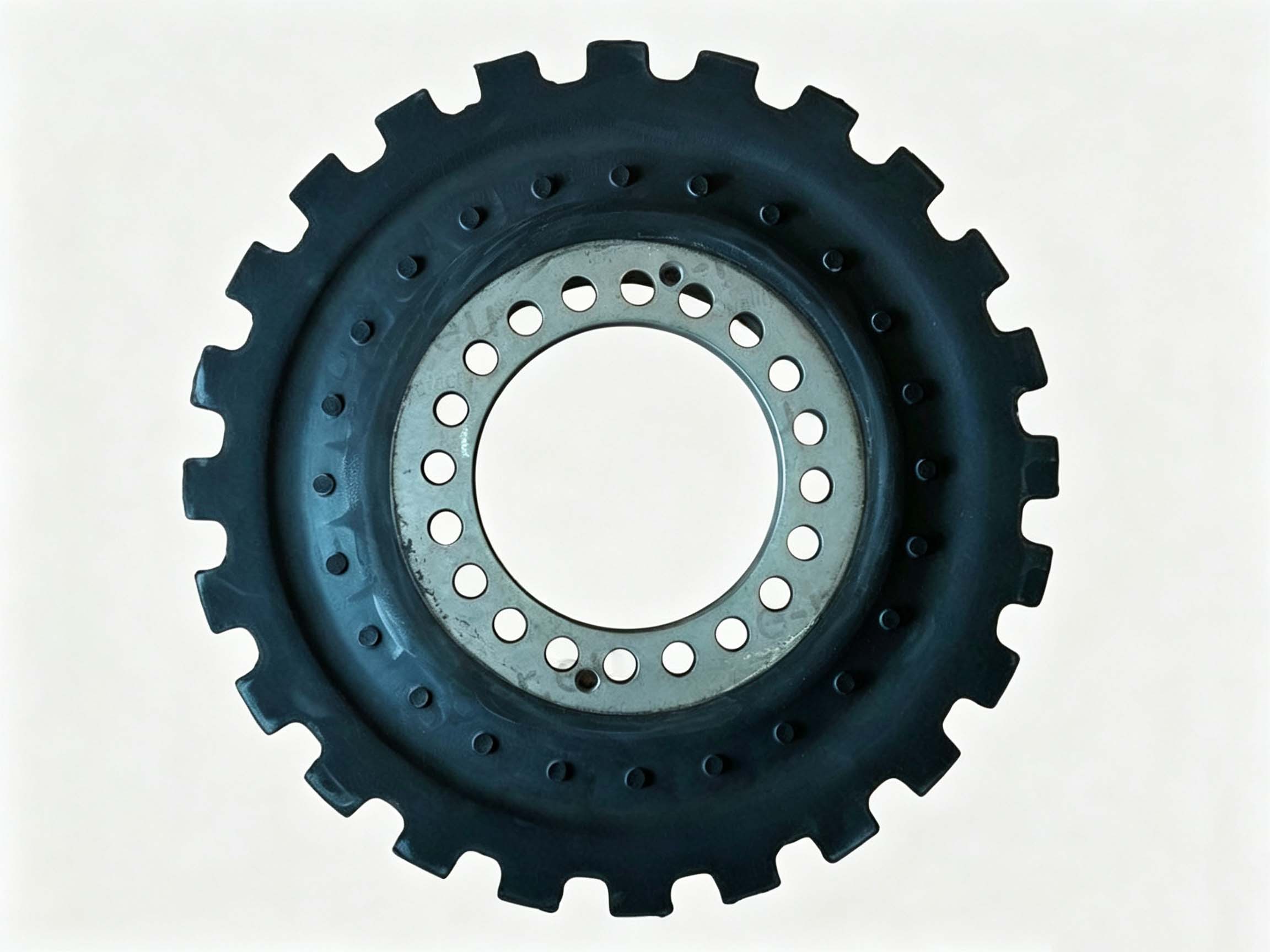

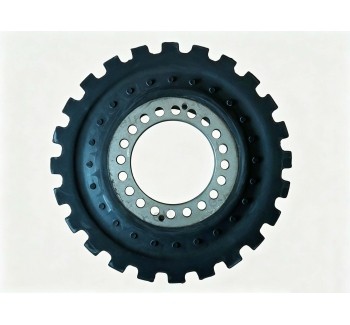

Stromag Periflex® VN43011 Highly‑Flexible Disc Coupling
Model: Periflex® VN43011
Brand: GKN‑STROMAG (Made in Germany)
The STROMAG Periflex® VN43011 is a heavy‑duty elastomer disc coupling from the Periflex® VN series, specially engineered for medium‑high torque diesel engine driven powertrains. It features linear torsional spring characteristics, delivering excellent torsional vibration damping and impact load absorption, effectively protecting engines, generators, gearboxes and associated equipment from harmful dynamic excitation.
Built with the proven axial plug‑in blind‑mount concept. The rubber disc tyre can be installed or replaced without removing adjacent engine or driven machinery, greatly lowering downtime for ship repair and on‑site maintenance. This coupling compensates axial, radial and angular shaft misalignment simultaneously, reducing extra stress on bearings, shafts and seals.
Two elastomer material choices are available for different operating environments:
‑ NR (Natural Rubber): ‑50 °C ~ +80 °C, outstanding damping performance for general industrial and marine auxiliary applications
‑ ECO heat‑resistant compound: ‑40 °C ~ +120 °C, superior oil and ozone resistance, ideal for continuous high‑temperature working conditions
Key Technical Data (Official Catalogue D 804)
Nominal Torque (Tkn): 1600 Nm
Maximum Torque (Tkmax): 4800 Nm
Allowable Alternating Torque (Tkw): 800 Nm
Allowable radial displacement: 0.9 mm
Torsional stiffness (CT dyn): 7800 Nm/rad
Relative damping (ψ): 0.80
Permissible damping power PKV60: 494 W
SAE flywheel connection: 14"
Maximum operating speed: 3000 rpm
Construction: Standard G‑type flywheel‑mount version; steel / ductile cast‑iron hub, aluminium connection ring, vulcanized elastomer disc tyre
Compliance: DIN ISO 9001 certified, ATEX II 2G c T4 / II 3D c 125 °C explosion‑proof approval
Typical Applications
Marine auxiliary generator sets, marine auxiliary drives, medium‑power diesel generator units, piston compressors, heavy‑duty pump drives, construction machinery and general industrial engine‑transmission systems.
We supply genuine STROMAG Periflex® VN43011 couplings. Every product undergoes full dimension inspection prior to shipment, complete technical documents are available upon request. Global fast delivery for ship‑repair and industrial‑project customers.
