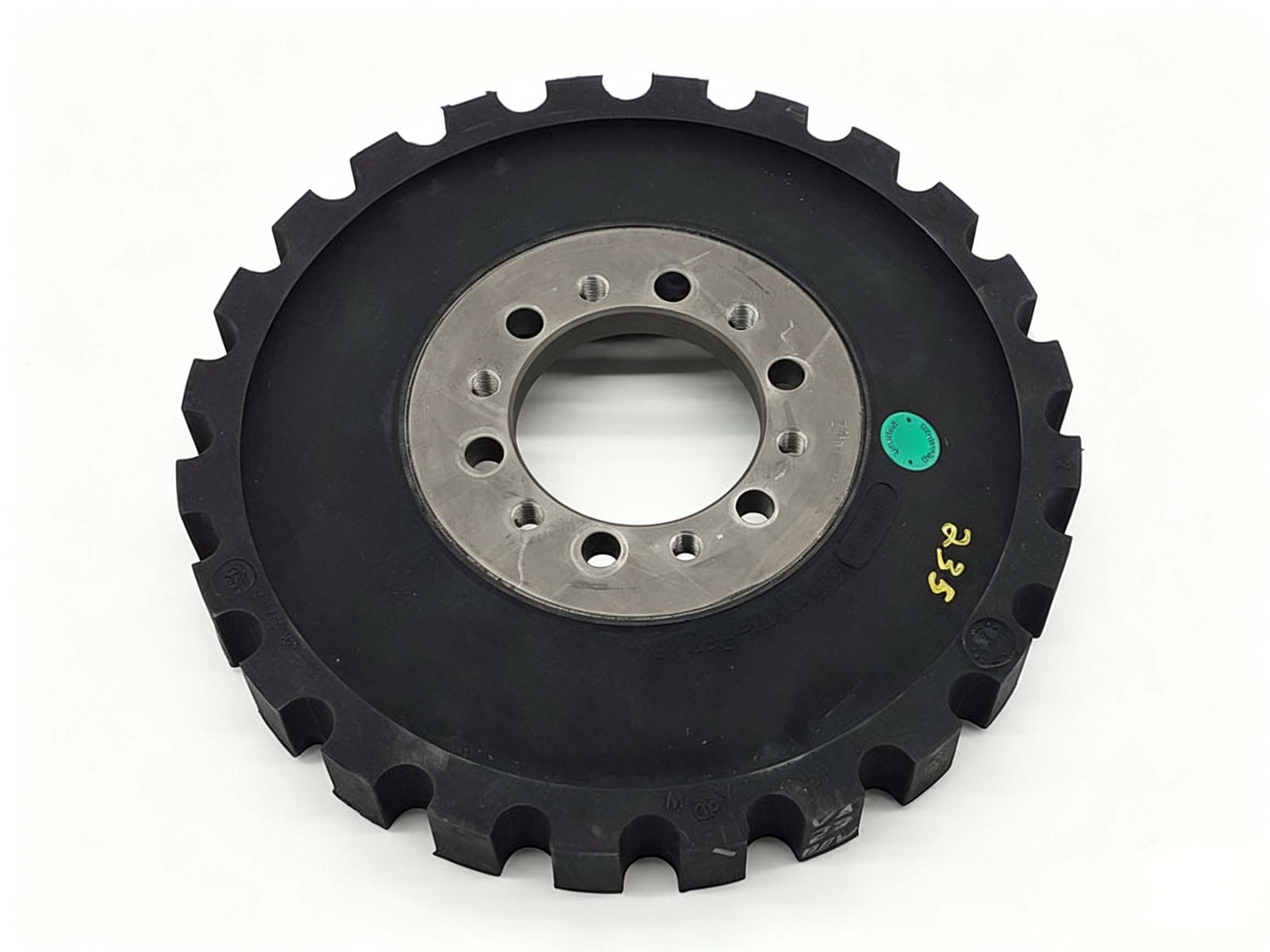

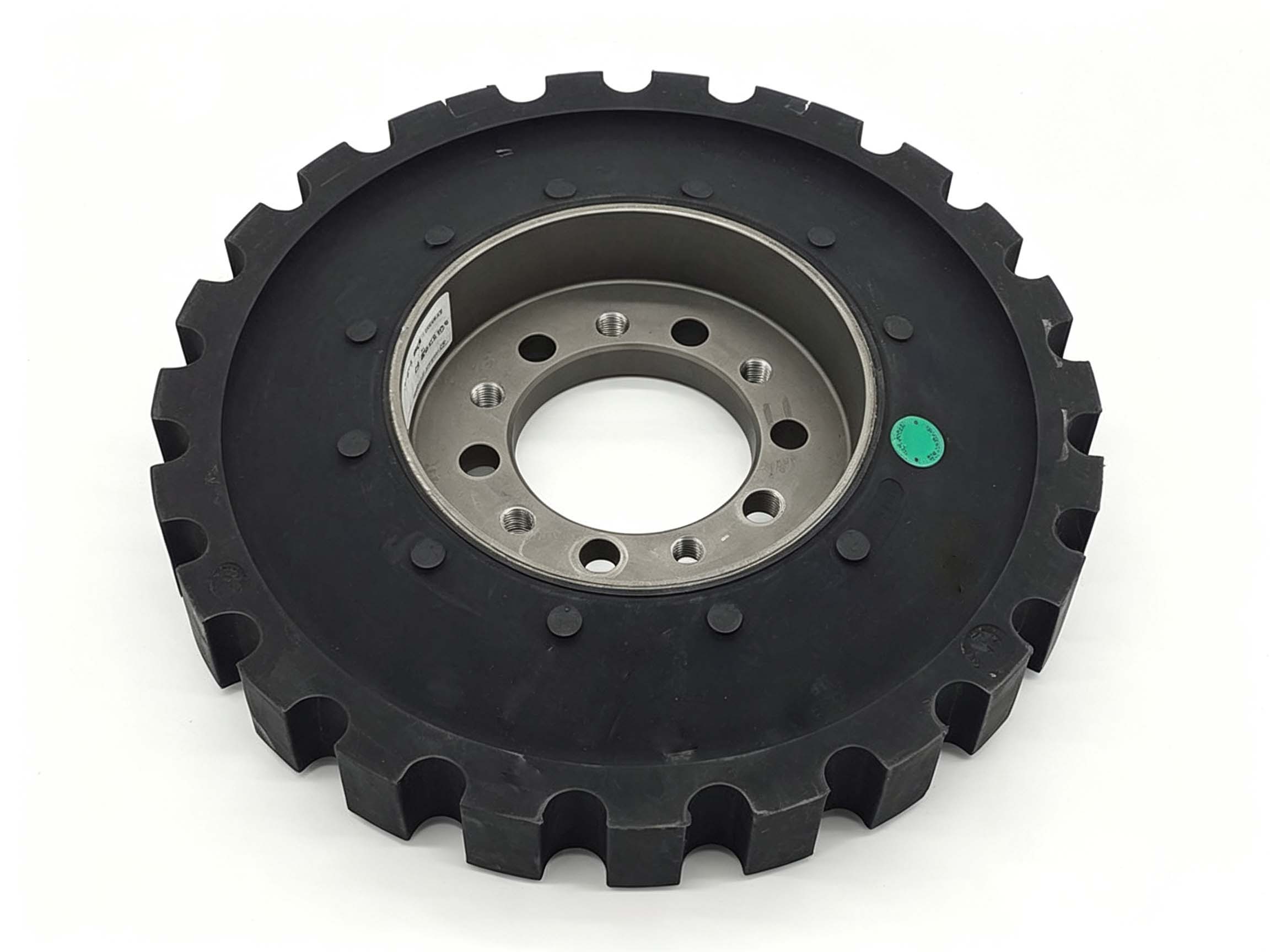

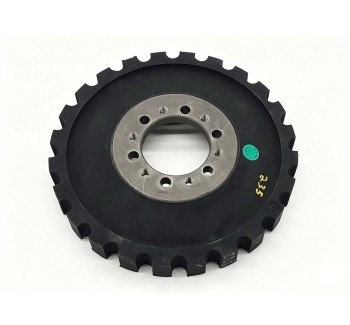

The STROMAG Periflex® VN23011 belongs to the well‑known Periflex® VN series, a high‑performance elastomer disc coupling optimised for diesel‑engine‑driven powertrains. It features linear torsional spring characteristics, delivering outstanding torsional‑vibration damping and shock‑absorbing performance to protect engines, generators and connected equipment from harmful dynamic loads.
Adopting proven axial plug‑in blind‑assembly design, the coupling can be mounted and the rubber disc tyre replaced without dismantling adjacent machinery, greatly cutting on‑site maintenance time. It compensates axial, radial and angular shaft misalignment simultaneously, lowering assembly‑precision requirements and reducing premature wear on bearings and shafts.
Two elastomer material options are available:
- **NR (Natural Rubber)**: ‑50 °C ~ +80 °C, good damping performance for standard working conditions
- **ECO heat‑resistant compound**: ‑40 °C ~ +120 °C, excellent oil‑proof and ozone‑resistant properties for high‑temperature marine and heavy‑duty environments
### Key Technical Data (from official catalogue)
- Nominal Torque (Tkn): **250 Nm**Stromag
- Maximum Torque (Tkmax): **750 Nm**Stromag
- Allowable Alternating Torque (Tkw): **125 Nm**Stromag
- Allowable radial displacement: **0.5 mm**Stromag
- Torsional stiffness (CT dyn): **1510 Nm/rad**Stromag
- Relative damping (ψ): **0.80**Stromag
- Permissible damping power PKV60: **156 W**Stromag
- SAE flywheel connection: **8"**Stromag
- Maximum operating speed: **4000 rpm**Stromag
- Construction: Flywheel‑mount G‑version, steel/ductile cast‑iron hub, aluminium connection ring, vulcanized elastomer disc tyre
- Certification: DIN ISO 9001, ATEX II 2G c T4 / II 3D c 125 °C explosion‑proof compliant
### Typical Applications
Marine auxiliary generator sets, marine auxiliary drives, diesel gensets, piston compressors, pump drives, construction machinery and general industrial engine‑driven transmission systems.
We supply genuine STROMAG Periflex® VN23011 couplings. Every unit undergoes full‑dimension inspection before shipment, with relevant technical documentation available. Global fast delivery for ship‑repair and industrial‑project customers.
>
> Disclaimer: STROMAG, Periflex® are registered trademarks of their respective owners. All products are sourced via legal global supply channels, brand and model names are used solely for product identification.
