**Brand**: CENTA (Rexnord Group)
**Model**: CENTAMAX‑5000 (Size 5000, available in S / SB / SD / SCE variants)
**Origin**: Made in Germany

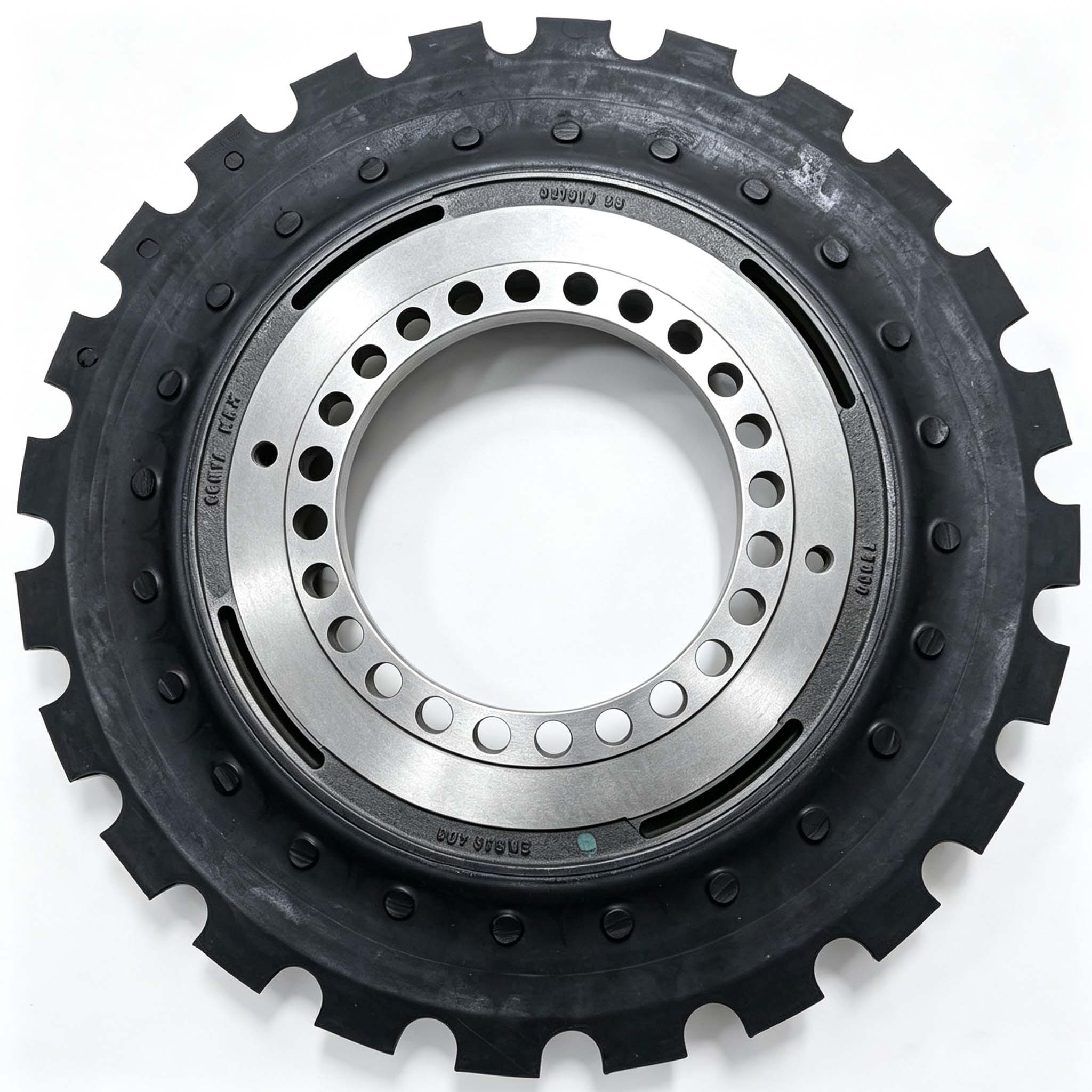

CENTAMAX‑5000 is a robust, plug‑in torsionally‑soft rubber‑in‑shear coupling, designed for resonance‑free operation of diesel‑engine‑driven powertrains in marine and stationary power‑generation applications. Torque is transmitted by interlocked toothed outer ring onto the rubber element. Self‑ventilated construction provides high permissible power loss, ideal for modern low‑emission engines. Multiple elastomer grades (Natural Rubber NR, Silicone Si, CENTALAN‑HT high‑temperature compound) are selectable to match system temperature and torsional‑vibration requirements. Backlash‑free transmission, maintenance‑free, blind axial assembly for quick installation and element replacementRexnord.
### Key Technical Specifications (From CENTA CM‑EN‑02‑18 catalogue, Size 5000 NR‑version)
>
> Note: Parameters vary by Shore‑A hardness grade. Figures for website reference only. Final project design shall refer to original CENTA datasheet. Stiffness tolerance:‑10 % ~ +20 %; relative damping tolerance ±15 % per factory specificationRexnord.
- Nominal Torque (T_{KN}): **4 500 Nm ~ 6 000 Nm** (Shore 50 / 60 / 70)
- Max. Torque 1 (T_{Kmax1}): **6 750 Nm ~ 9 000 Nm**
- Max. Torque 2 (T_{Kmax2}): **9 000 Nm ~ 12 000 Nm**
- Alternating vibratory torque (T_{KW}): **1 800 Nm ~ 2 400 Nm**
- Max. permissible rotational speed (n_{max}): **3 000 rpm**
- Permissible power loss (P_{KV}): **555 W ~ 595 W**
- Dynamic torsional stiffness (C_{Tdyn}): **13 100 ~ 45 000 Nm/rad** (hardness‑dependent)
- Relative damping ψ: **1.05 ~ 1.15**
- Elastomer options & temperature range:
- Natural Rubber (NR): **‑45 °C ~ +80 °C**
- Silicone (Si): **‑45 °C ~ +120 °C**, improved oil‑ozone resistance
- CENTALAN‑HT: **‑25 °C ~ +100 °C**, short‑term peak +120 °C, excellent ageing & UV‑resistance
- Flywheel interface: SAE J620 standard, typical SAE 14 / 18‑inch flange
- Allowable misalignment:
- Axial displacement: ± 1.5 mm
- Radial displacement: ± 1.0 mm
- Angular displacement: ± 0.50°
- Available variants: S / SB / SD / SCE; SCE with threaded‑in element holes for compact OEM installation
### Typical Applications
Marine auxiliary generator sets, marine auxiliary drives, stationary diesel gensets, pump & compressor drives, industrial engine‑gearbox powertrains, ship‑repair & retro‑fit projects.
We supply genuine CENTA CENTAMAX‑5000 highly‑flexible rubber couplings. Every unit undergoes full dimensional inspection prior to shipment. Original factory technical documents can be provided on request. Fast global delivery for marine and industrial‑project customers.
