**Brand**: VULKAN
**Model**: VULASTIK‑L4316

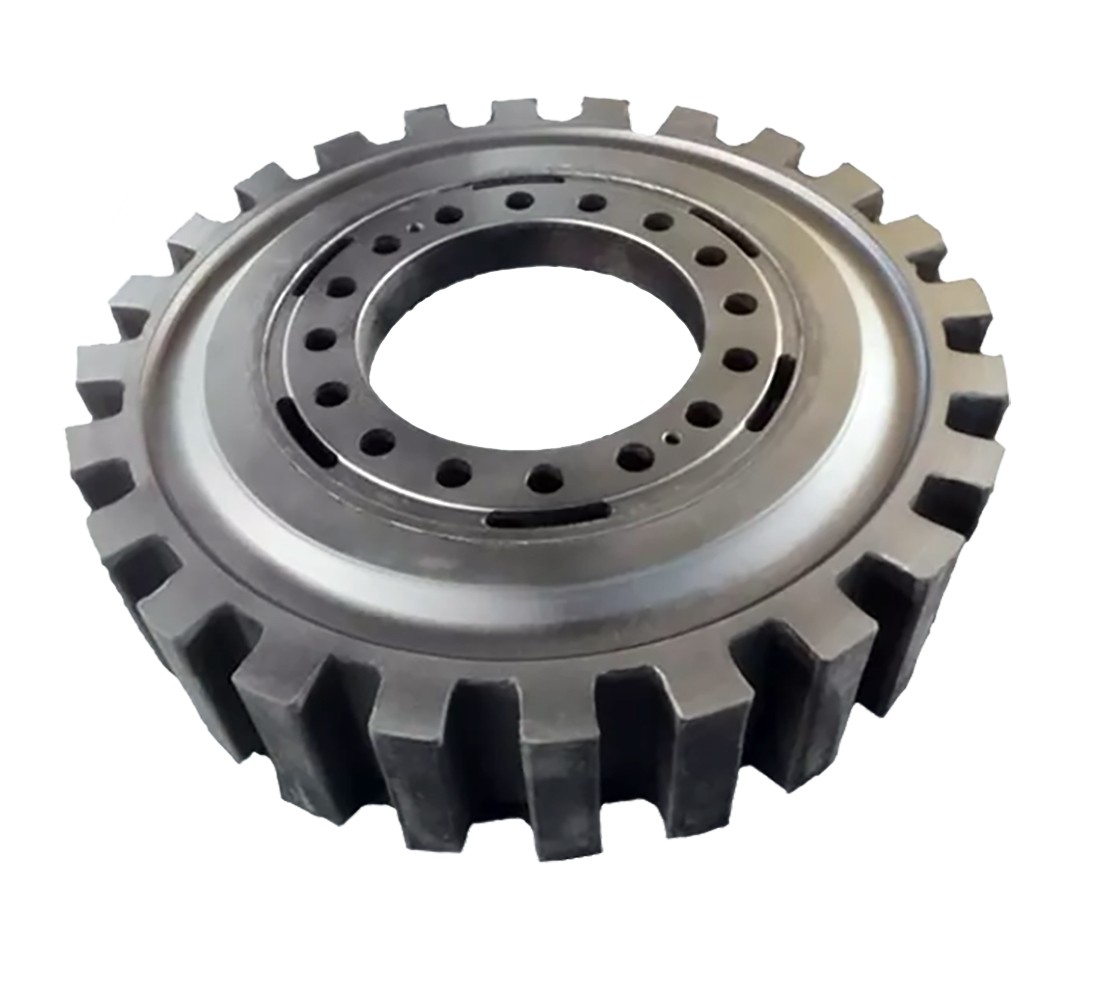

VULKAN VULASTIK‑L4316 belongs to VULASTIK‑L series axial plug‑in highly‑flexible rubber coupling, designed for diesel‑engine‑driven powertrains for marine and stationary power generation. It adopts proven external toothing plug‑in construction; the elastomer disc element can be assembled and replaced axially without disassembling adjacent equipment, greatly reducing ship‑repair and on‑site maintenance downtime.
It provides excellent torsional‑vibration damping and shock‑absorbing performance, compensates axial, radial and angular shaft misalignment, lowering extra stress to bearings, shafts and gear‑boxes. Two elastomer material options are selectable: Natural Rubber (NR) for general marine duty; Silicone compound for high‑temperature, oil‑resistant working conditions. Maintenance‑free running, no lubrication required during service life.
Key Technical Specifications (Extracted from official VULKAN VULASTIK‑L catalogue 08/2022, X4310 dimension group, NR‑version X4311 reference base)
>
> Note: Actual values for VULASTIK‑L4316 vary by stiffness grade; figures below are catalogue baseline reference. Final engineering calculation must refer to original factory datasheet.
- Nominal Torque (Tkn): **20.80 kNm**
- Max. Torque 1 (Tkmax1): **24.00 kNm**
- Max. Torque 2 (Tkmax2): **72.00 kNm**
- Allowable Alternating Torque (Tkw): **6.40 kNm**
- Max. permissible rotational speed: **2500 rpm**
- Allowable misalignment:
- Radial displacement ΔKr: **1.5 mm**
- Angular displacement ΔKw: **0.50°**
- Dynamic radial stiffness (Crdyn): **5.4 kN/mm**
- Dynamic torsional stiffness (CTdyn): **130 000 Nm/rad**
- Relative damping (ψ): **1.00**
- Permissible damping power PKV30: **400 W**
- Flywheel interface: **SAE J620 21"**
- Elastomer options:
- Natural Rubber(NR): ‑50 °C ~ +80 °C
- Silicone: ‑40 °C ~ +120 °C, improved oil & ozone resistance
- Construction: Axial plug‑in toothing design; hub, aluminium connection ring, vulcanized rubber disc element
- Available series type: 2800 /2801 /2802 /2803 /2810 /2811 /2830 variants (for bell‑housing / free‑standing installation, with‑/without torsional‑limit safety device)
Typical Applications
Marine auxiliary generator sets, marine auxiliary drives, diesel gensets, PTO power take‑off units, pump drives, ship‑repair projects and stationary industrial power generation systems.
