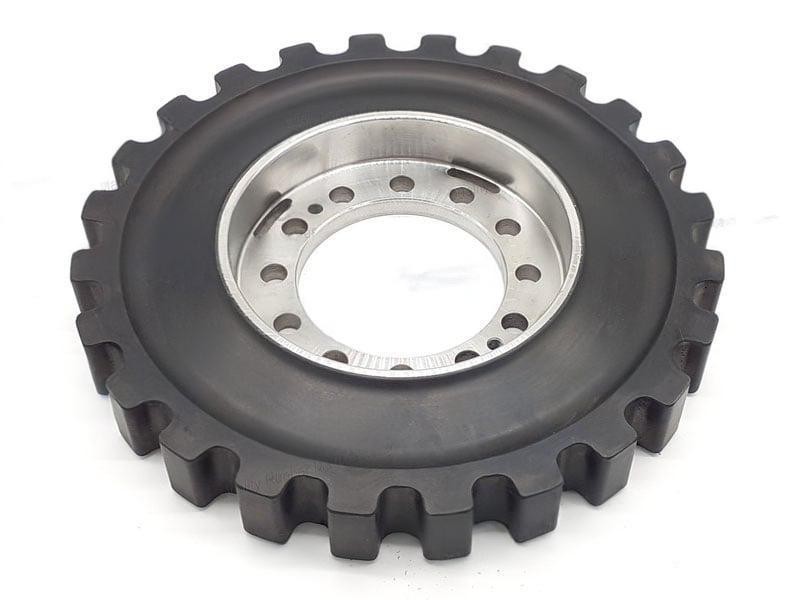

VULKAN VULASTIK-L2213 is a compact, highly flexible rubber coupling for light-to-medium torque transmission. Featuring an axial plug-in design, it provides excellent vibration damping, shock absorption and multi-directional misalignment compensation. Widely used in diesel generators, marine auxiliary drives and industrial machinery.
VULKAN VULASTIK-L2213 is a robust, torsionally flexible coupling designed for light-to-medium torque transmission and vibration-sensitive systems. It features a compact axial plug-in design with a disc-shaped elastic element, vulcanized at the inner radius and plug-in toothing at the outer radius for easy installation and replacement.
This coupling effectively compensates axial, radial and angular misalignment (up to 0.5° angular), reducing installation precision demands and protecting shafts, bearings and connected equipment. The high-quality elastomer element absorbs torsional vibration and shock loads, suppressing resonance and extending the service life of diesel engines, gearboxes and driven machinery.
🔧 Technical Data – VULASTIK-L2213
Model: VULKAN VULASTIK-L2213
Nominal Torque (TKN): 2.2 kNm (2,200 Nm)
Max Torque: 4.4 kNm (4,400 Nm)
Vibratory Torque: 0.68 kNm
Max Speed: 3,200 rpm
Temperature Range:
Natural Rubber: –45 °C to +90 °C
Silicone (optional): –45 °C to +120 °C
Material: High-performance natural rubber (black); silicone available
Misalignment Capacity:
Angular: 0.5°
Axial: ±2 mm
Radial: ±1 mm
Design: Axial plug-in, single elastic element
Weight: Approx. 5.5 kg
Features: Maintenance-free, no lubrication, compact footprint, easy element replacement
The self-ventilated structure ensures reliable heat dissipation during continuous operation. The plug-in design enables fast, tool-free installation and replacement without moving adjacent equipment, minimizing downtime. With excellent resistance to oil, ozone and moisture, VULASTIK-L2213 adapts to marine engine rooms, generator sets and industrial workshops. It is widely applied in diesel generators, marine auxiliary drives, pumps, compressors and light industrial machinery.
